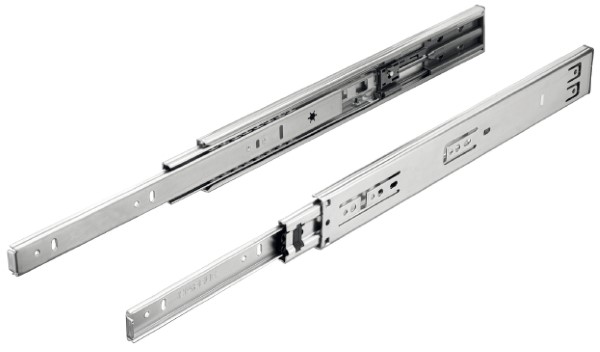

Description
Mounting: Side mounted
Version: With self closing and soft closing mechanisms
Colour/finish: Zinc plated
Model: BB A30
Type of pull out: Full extension
Area of application: Material thickness 1.2/1.2/1.4 mm

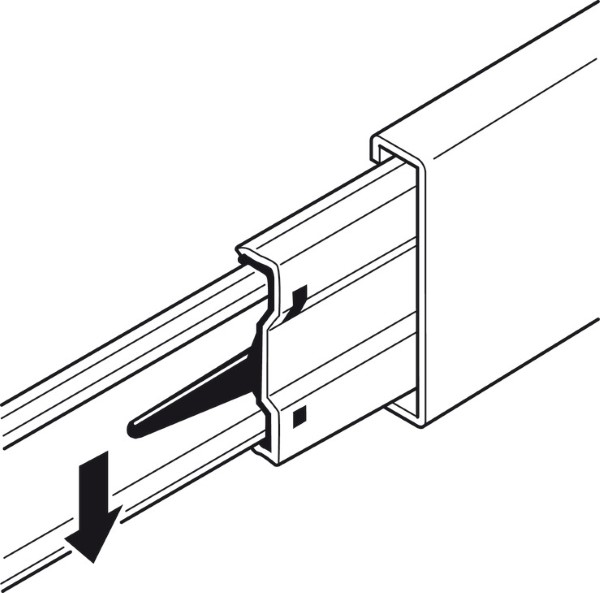

Drawer removal: With release lever
Material: Steel
Bearing: Ball bearing
Height: 30.00 mm
Installation: Screw fixing
Order reference: Order Hospa 4.0 mm countersunk head screws and Varianta 5 cylindrical head screws separately
For optimum performance allow between +0.2mm and +0.5mm over the nominal runner thickness, for the runner space
