Description
Direct fixing, no drilling necessary
One pair of hinges is suitable for mounting on either the left or the right hand side.
For safety reasons we recommend that toughened glass be used with these hinges.

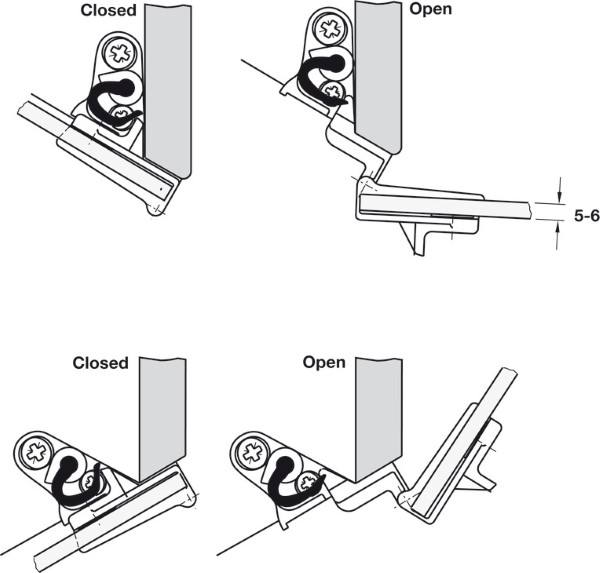

Opening angle – 210°
Material – Zinc alloy
Colour/finish – nickel plated
For door material – Glass
For glass thickness – 5 6 mm
Load bearing capacity per pair – 4.00 kg

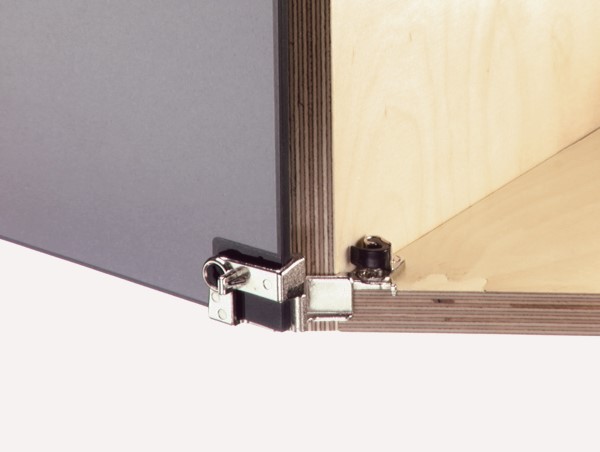

Application – For glass overlay doors
For +30° to -30° corner applications
For door width – =350 mm
For door height – =800 mm
Door width max. – 350.00 mm
Door height max. – 800.00 mm
