Description

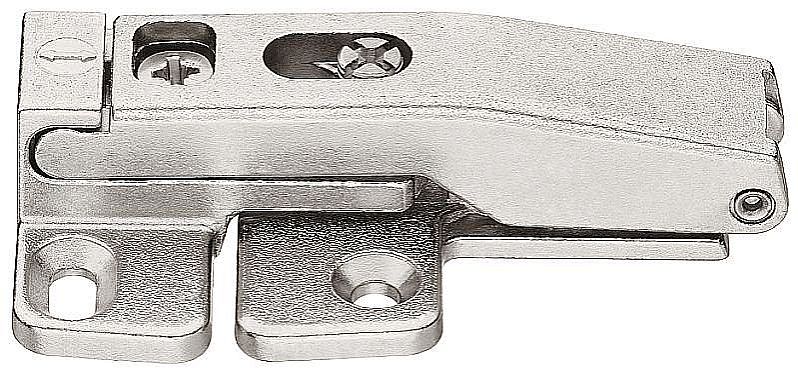

Connecting Hinge, for Free Fold fitting.

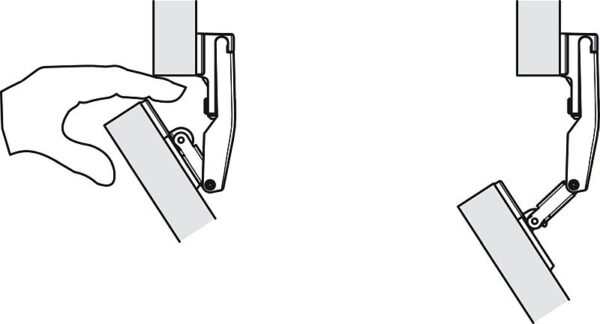

With finger protection function – if fingers are accidentally inserted into the flap gap, the hinge unhooks itself to prevent injuries.
Use 3 hinges for flap widths >900 mm
Colour/finish: nickel
Area of application: For wooden flaps and flaps with aluminium frame, from frame width 20 mm
Material: Zinc alloy
Version: With finger trapping protection function
Adjustment facility: 3-dimensional, Side adjustment +/-2 mm, Gap adjustment ย2 to +1 mm, Depth adjustment +/-1.5 mm
This item is available whilst stocks last. Please contact us for availability of additional stock.
