Description

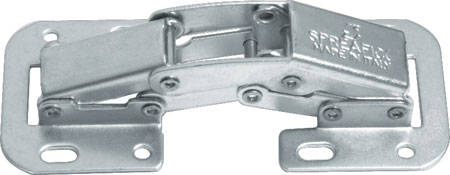

Easy mount concealed hinge
Opening angle 90deg
Easily installed by screw-fixing
Sprung or unsprung
For minimum door thickness 16 mm
For side panels 16 – 22 mm thick
To hinge one overlay door, side or centre panel mounted or one inset door, side panel mounted
Zinc-plated steel hinge

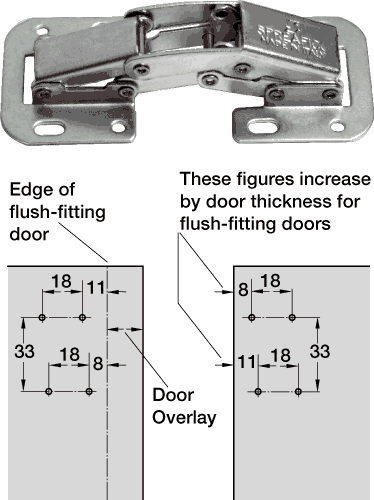

See PDF Page for drilling dimensions
