Description

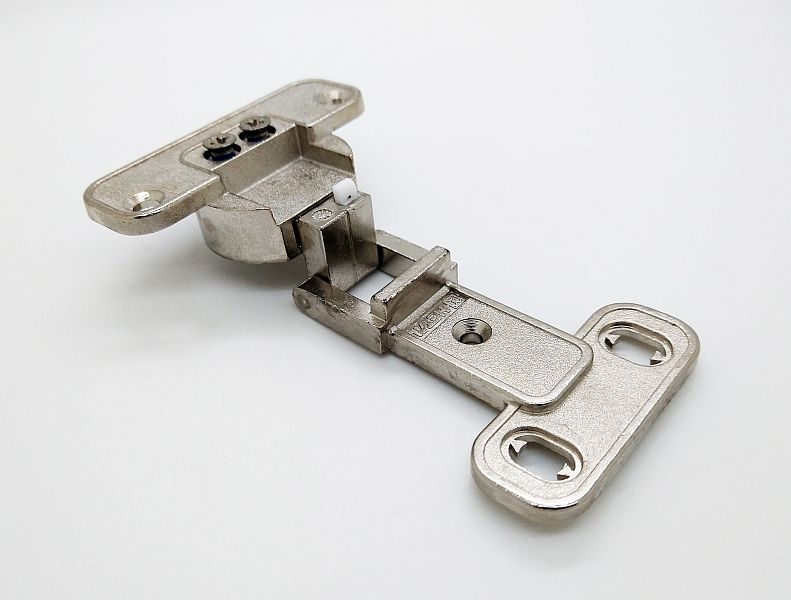

Exposed Axle Hinge, Aximat 180deg, with Catch, Inset Mounting

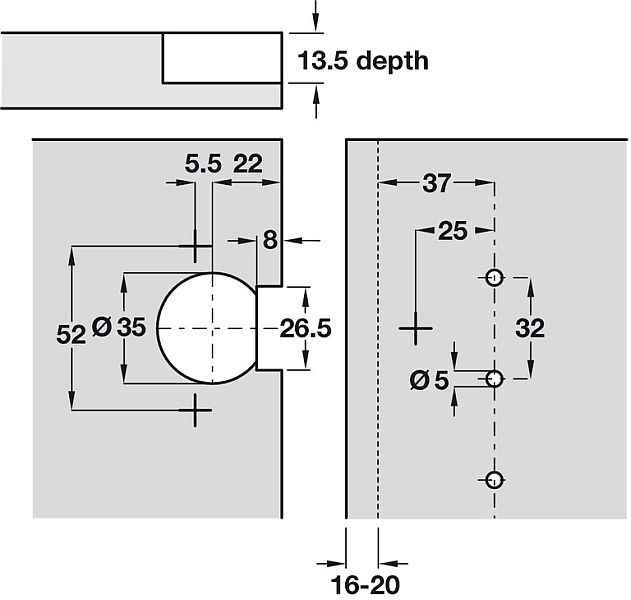

For one inset door, side panel mounted – Screw fixing, 52/5.5
35 mm cup
With catch
Nickel plated
Suitable for single sided mounting.

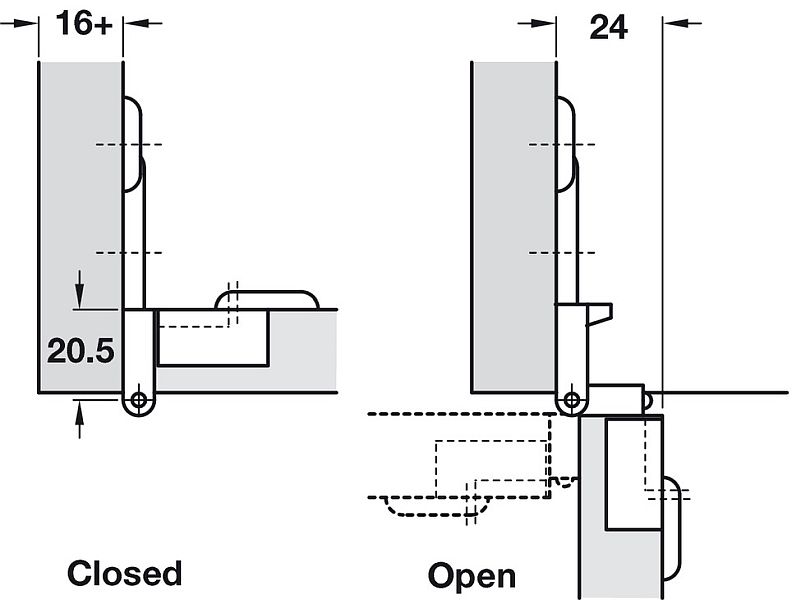

Flush fitting doors
Lateral adjustment up to – 2 mm
Vertical adjustment +/- 2 mm
Opening angle 180 deg
Side panel mounted, screw fixing
For door thickness: Up to 20.5 mm
