Description

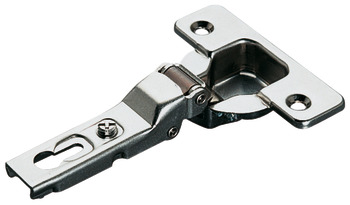

Flat concealed hinge, full overlay specifically for refrigerator door applications with automatic closing spring.
Function: With automatic closing spring
Concealed hinge version: Full overlay
Crank type: Cranked
For door material: Wood
Door processing for assembly: with cup drilling
Material: Steel
Colour/finish: nickel plated
Opening angle: 94°
Cup drilling depth: 11.00 mm
Cup drilling Ø: 35.00 mm
Cup fixing: for screw fixing
Drilling pattern: 52/5.5
Adjustment facility: Side adjustment 4.5 mm, Height adjustment -2 2 mm, (height adjustment with cruciform mounting plates)

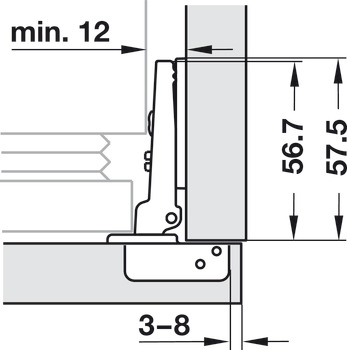

Installation: Door to cabinet with slide-on system using Duomatic A mounting plates
Order reference: Order mounting plate 329.67.040 and Hospa 3.5 mm countersunk screws separately
