Description
Essentials standard 110deg hinge, Diam: 35 mm cup, screw fixing, slide on arms, sprung
Opening angle 110deg, 45 mm cup fixing
0 mm crank
Sprung
Diam: 35 mm cup, 45 mm cup fixing centres
Screw fixing cup
Slide on arm
Nickel-plated pressed steel cup and arm
Mounting plates are not included
Hinge arm cover plates are available seperately

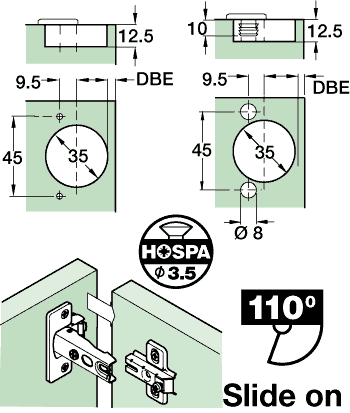

For illustrations, dimensions and instructions on how to choose the relevant mounting plates, please see PDF Page
Crank: 0 mm
This item is available whilst stocks last. Please contact us for availability of additional stock.
