Description

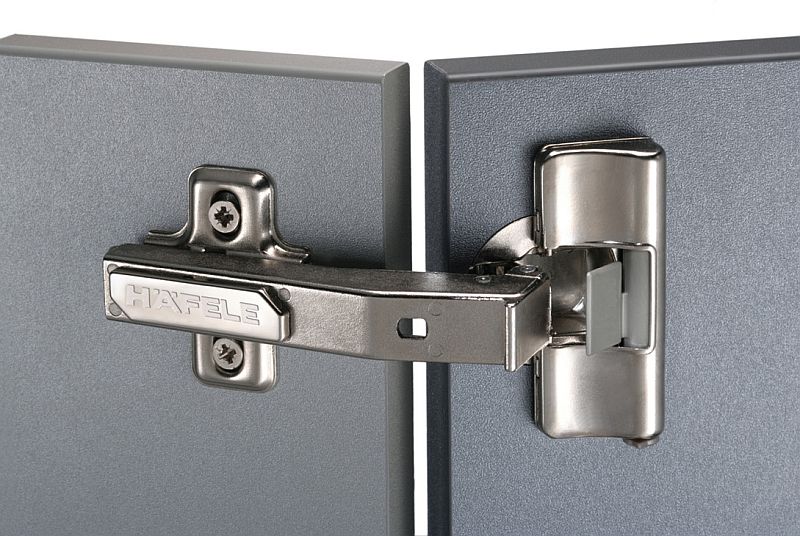

For use in corner kitchen cabinets and other specialised furniture applications
Drilling diameter for hinge cup: 35 mm
Version: Click on

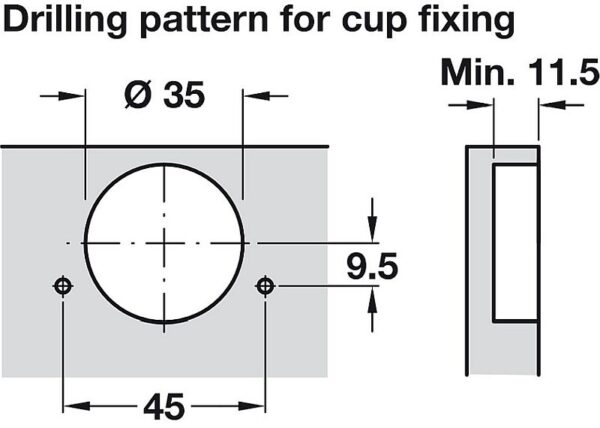

Drilling pattern: 45/9.5 mm
Cup fixing: For screw fixing
Mounting: Mounting in drilled hole, Screw fixing
Opening angle: 90deg
Crank type: Straight

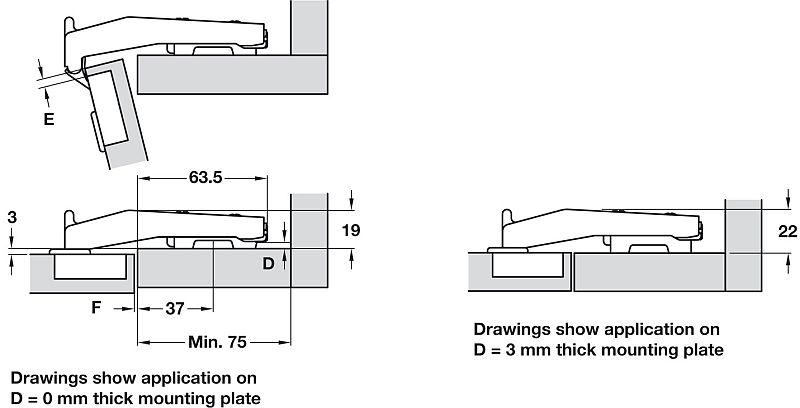

Installation: Hinge on plate mounting system
Door processing for assembly: Cup drilling
Adjustment facility: Hinge integrated adjustment
Cup drilling depth: 11.5 mm
Order 3.5 mm countersunk screws separately
This item is available whilst stocks last. Please contact us for availability of additional stock.
