Description

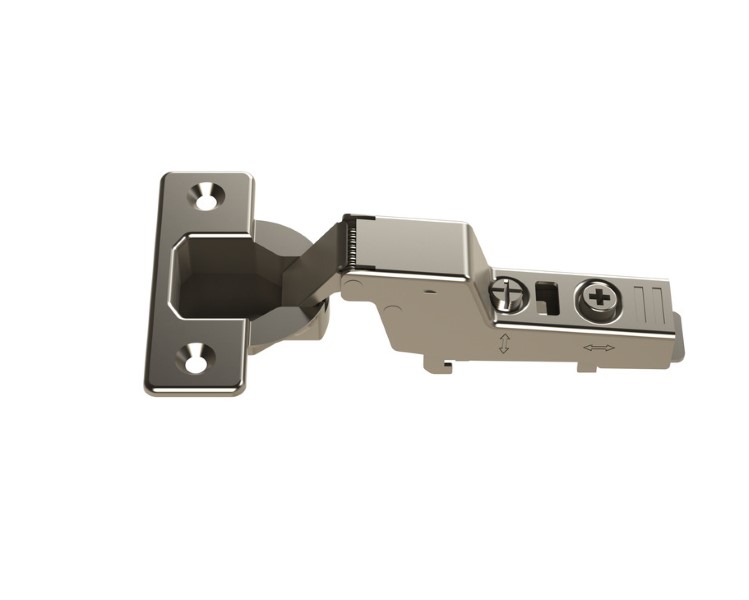

Concealed Cup Hinge, new Smuso range, 110deg Integrated Soft Close, Inset Door Mounting, with Standard Depth Adjustment.
Screw fixing cup, quick fixing arm, 45/9.5 mm
Order mounting plate seperately.
35 mm dia cup
Automatic closing

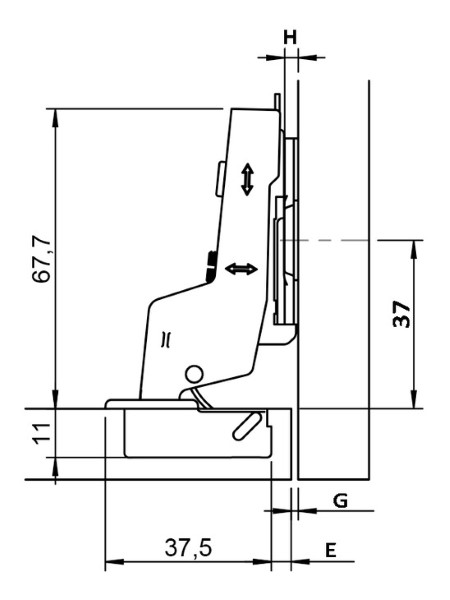

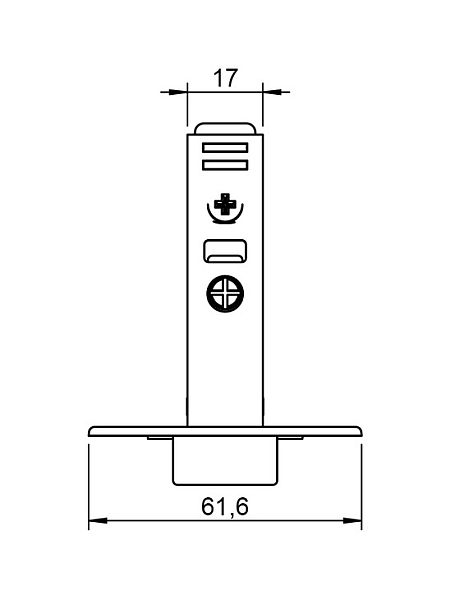

Drilling pattern: 45/9.5 mm
Adjustment facility: Side adjustment +3 mm. Height adjustment 2mm (via mounting plate). Depth adjustment 2mm

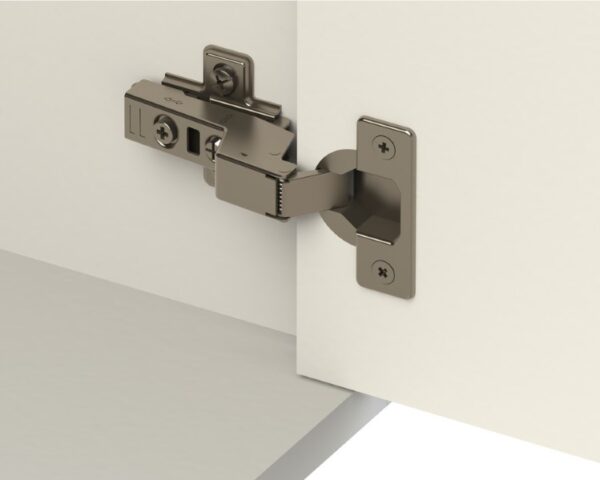

Overlay: Inset
Hinge arm: Quick fixing
Cup fixing: Screw fixing
Type of closing: With integrated soft close
For door thickness: 14-26 mm
Opening angle: 110 deg
Drilling depth: 12 mm
Guarantee: 25 years
Material: Steel
Finish: Nickel plated
This item is available whilst stocks last. Please contact us for availability of additional stock.
