Description
Concealed shelf supports, press-fit into masonry walls
For concealed mounting of shelves
For installation into masonary walls
Press-fit mounted

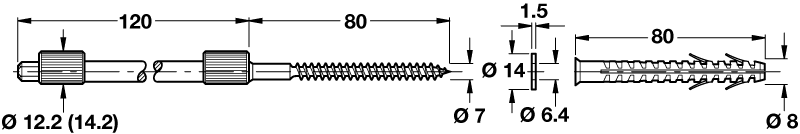

12 mm size for 19 mm shelf thickness
14 mm size for 22 mm shelf thickness

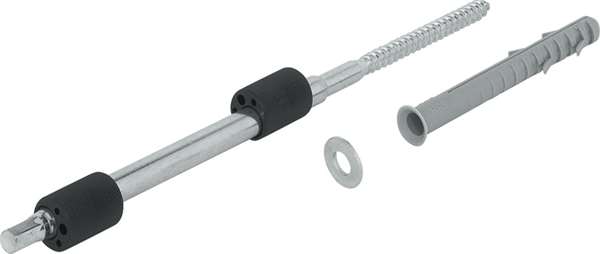

Fitting comprises:
– 1 galvanised steel supporting pin with threaded screw
– 2 pre-mounted plastic sleeves
– 1 galvanised steel washer
– 1 grey nylon Fischer wall plug, S 8H 80 R

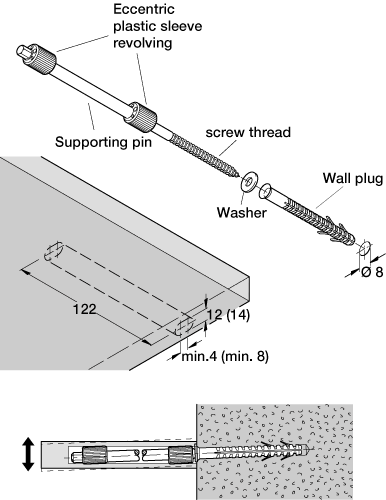

Level the shelf by laying on the shelf supports and adjusting the eccentric screws before finally fixing the shelf in position
Adjustable in height and inclination:
– 12 mm size: +/- 1 mm
– 14 mm size: +/- 2 mm
Support for 19mm shelf thickness
