Description
Concealed shelf support, screw mounted into masonry walls
For concealed mounting of shelves
For installation directly into masonry walls
Suitable for all domestic applications, especially shelving systems, radiator screens and telephone supports
Screw mounted

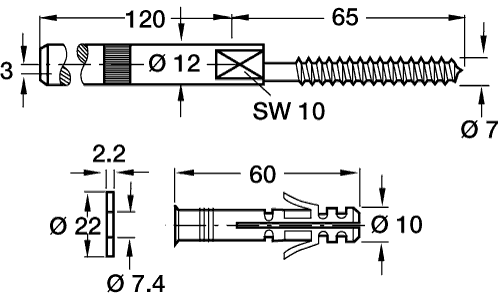

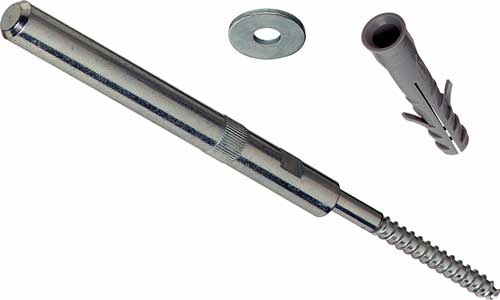

Fitting ccomprises:
– 1 hardened steel supporting pin with screw
– 1 galvanised steel washer
– 1 nylon wall plug, SR 10 60 mm

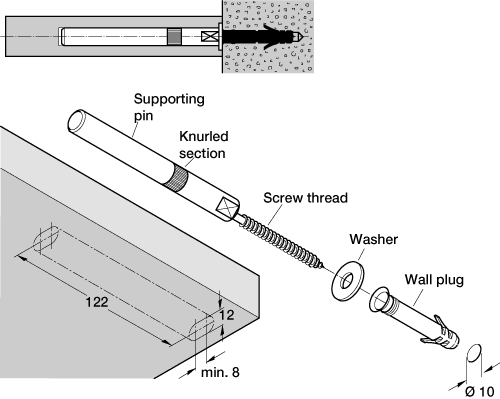

Easy installation and vertical adjustment:
– Drill Diam: 10 mm hole and insert wall plug
– Slip washer (supplied) onto screw thread
– Screw shelf support into wall plug
– Install shelf on support as far as the knurled section
– Use an SW 10 open-ended wrench for vertical adjustment
– Finally push the shelf all the way to the wall
Masonry wall shelf support
