Description

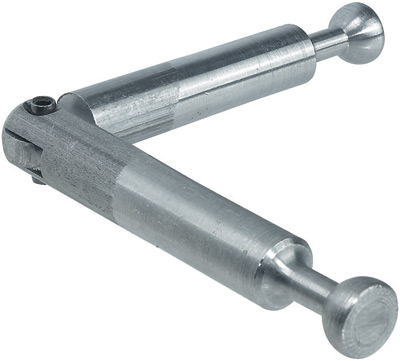

Minifix GV mitre joint connector, for Diam: 7 mm holes
Double-ended hinged bolt for installation in Diam: 7 mm holes
For double-sided constructions
Steel

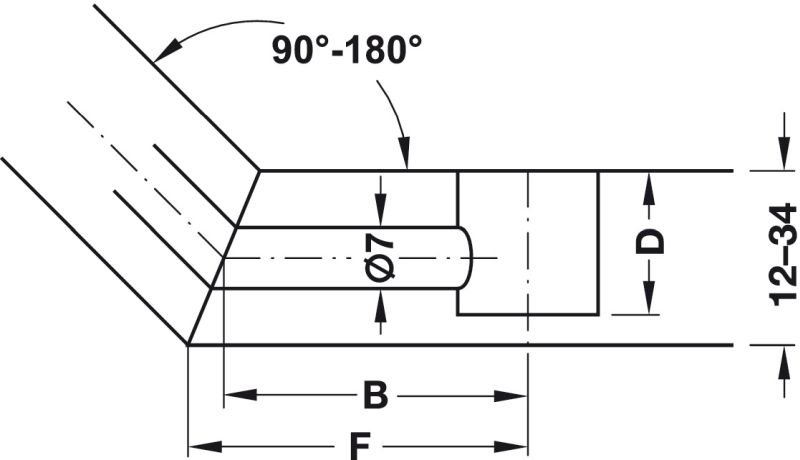

Can be used for any angle from 90deg to 180deg
These connectors should preferably be used only in combination with Minifix 15 housings available seperately
When ordering, please note: Each connecting bolt equires two Minifix housings

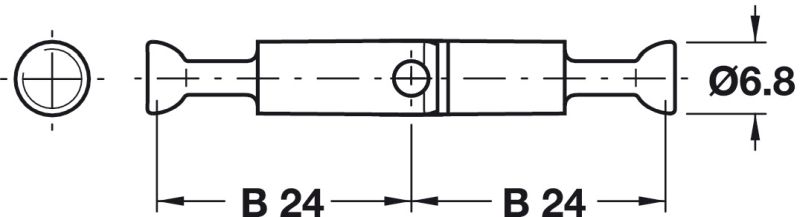

Galvanised steel 24 mm drilling distance
This item is available whilst stocks last. Please contact us for availability of additional stock.
