Description

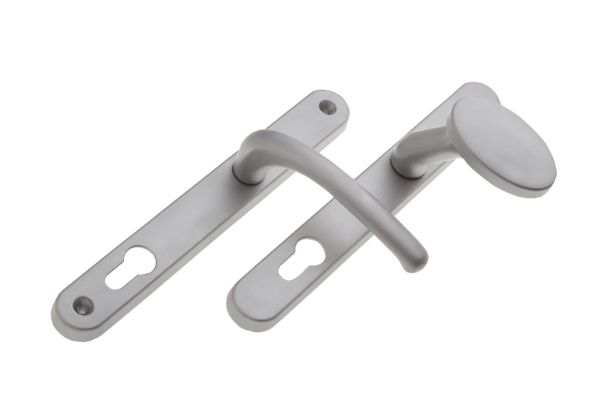

The stylish Balmoral range of sprung door furniture from Fab & Fix is supplied fully assembled for quick installation onto UPVC doors. This ergonomic corrosion resistant lever/pad door handle is made of made with a solid die cast construction, with a heavy duty spring cassette packaged separately to avoid parts scratching during transit.
Features:
Lift Lever
Spindle not supplied
Colour co-ordinated screw heads
Supplied fully assembled for quick installation
Supplied with screw pack to suit 60-70mm profiles
Fixing lugs are supplied on both back plates
The sprung levers and moveable pad are fully reversible
Fab & Fix10 Year Guarantee 10 Year Guarantee
Operated By Euro Cylinder

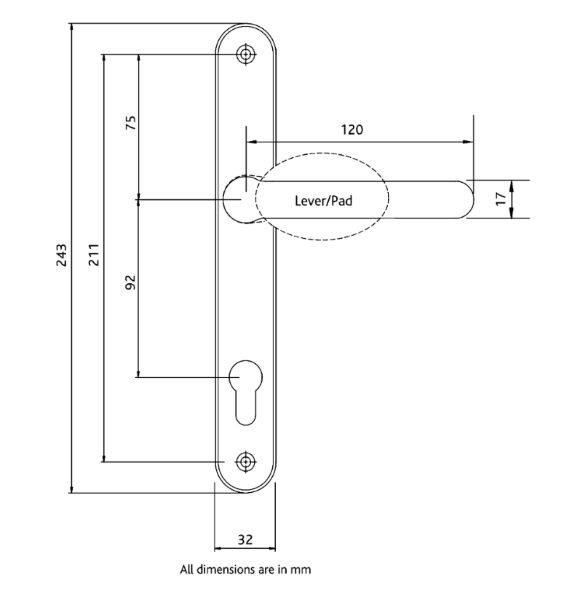

Centres: 92mm
Finish: Satin Silver
Guarantee: 10 Year
Handed: Reversible
Handle Length: 120mm
Handle Width: 17mm
Manufacturer Reference: DHABLPSIP
Plate Height: 243mm
Plate Length: 243mm
Plate Width: 32mm
Screw Centres: 211mm
Keyhole centre: 92mm
Spindle: 8mm
.
Standards: BS EN 1670 2007,
PAS 24 2016
Weight: 495g
