Description

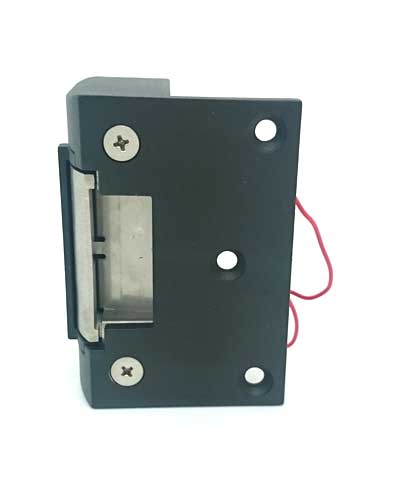

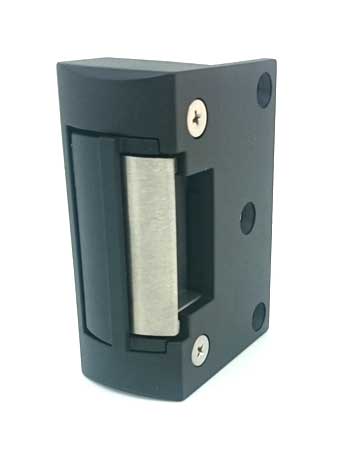

The Trimec ES150 is a surface mounted electric strike suitable for use with rim or surface type dead latches. This strike can be fitted to steel or wooden door frames and is easy to install. It can be controlled by a keypad, key switch or integrated into any access control system.
Medium duty
Inward opening only
DC release are reversible fail locked or fail unlocked
Continuously rated
Adjustable Jaw: No

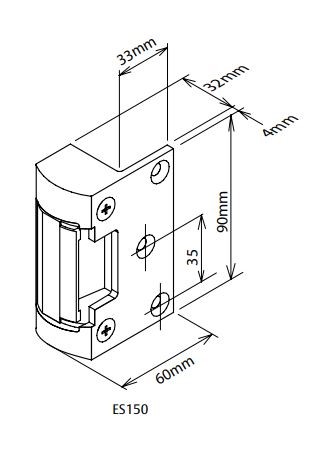

Body Depth: 30mm
Body Height: 88mm
Brand: Trimec
Current Consumption: 0.25A @ 12V DC / 0.187A @ 24V DC
Faceplate Height: 88mm
Faceplate Width: 62mm
Finish: Grey
Fitting: Rim
Guarantee: Tricare 5 Year Warranty
Handed: Inward Opening
Holding Force: 680Kg / 1500Lbs
IP Rating: IP56
Input Voltage: 12/24V DC
Jaw Depth: 12mm
Jaw Height: 38mm
Jaw Width: 16mm
Manufacturer Reference: 110152-010M
Monitored: No
Operation: Fail Locked / Fail Unlocked – Site Reversible
Weather Resistant: Yes
Weight: 240g
This item is available whilst stocks last. Please contact us for availability of additional stock.
